We listened to you, the customer, and we now manufacture the...
1st and Only
PJ High Frequency Surge
in the WORLD!
We were the first manufacturer to bring you a 40KV, we were the first and we still are the only one to offer a 50KV and now we have out done ourselves again!
We have been on the Frontier of Surge Tester Innovation for over 40 years.
We now proudly introduce our 60KV PJ High Voltage, High Frequency Surge Tester!
L" x W"
||25" x 21" x 56"
|| 3,600 VA
|| 60,000 V
Our customers asked for output greater than our exclusive 50KV .....and we "delivered".
This remarkable digital PJ High Frequency Surge Tester is capable of producing 60 pulses per second of 60,000 volts with a
voltage rise time of 0.1 micro seconds (100 nano seconds)! *This Tester is only available in 220-240 VAC input operating voltage.
Like all of our Console Models, this 60KV is the ultimate in ruggedness & durability.
Fourteen / sixteen gauge steel construction and mobility on 6" heavy duty phenolic wheels makes it perfect for use in harsh industrial environments.
The performance of PJ's exclusive/unique High Frequency Technology is capable of testing the integrity of any turn-to-turn insulation, including low inductance windings. This model, as well as all of our Models, come standard with dual waveform display presentations: (1) Resonant Current Waveforms for Surge Testing "coil-to-coil" and low impedance windings (2) Resonant Voltage Waveforms for Surge Testing all types of
multi-phase winding insulation systems including the surge testing of Fully Assembled Motors without moving the rotor.

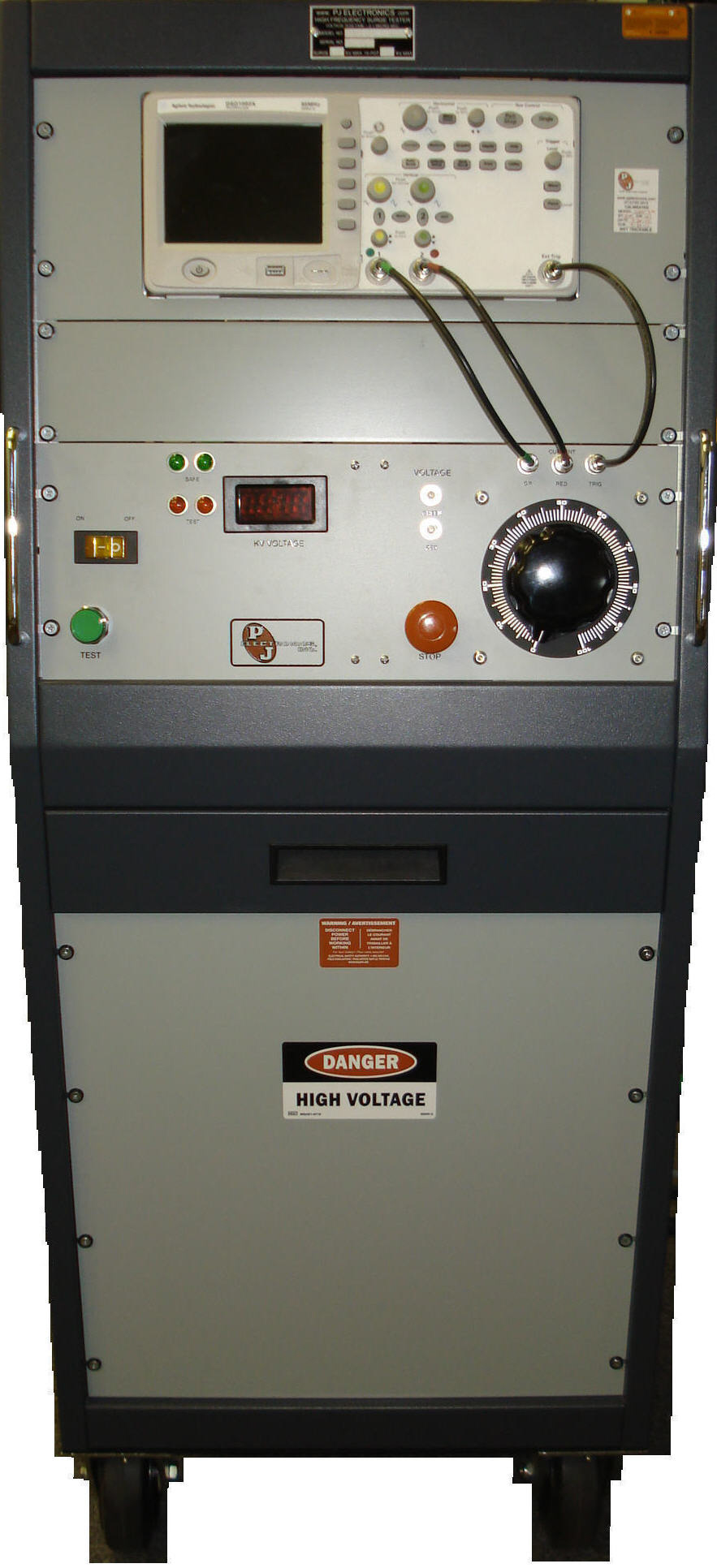

The internal components in all of our consoles are excessively over designed, just like the ones that were built in the early 1970's (which are still operating today). (Model C60-2M shown on right)
This 60KV Digital P J High Frequency Surge Tester is the highest voltage Surge Tester on the market today! It has no competition!
This magnificent Tester is equipped with a digital, programmable, rack-mounted, color storage UltraVision Rigol oscilloscope with USB interface ports, a 2 GSa/s sampling rate, interactive UltraSigma Software and an 8"
display screen. Also included is a bonus USB flash drive for virtually unlimited storage capabilities. Tester is equipped with a Zero Interlock safety feature.
More of "What's New?"-
||An upgraded Oscilloscope option is now available on all of our Console Model Testers (10KV to 40KV) and on our Bench "S" Model PJ Testers: it is a color Rigol DS2000 series storage, programmable UltraVision oscilloscope with
more features than our standard DSE scope, better Software, a 2 GSa/s sampling rate and an 8"
display screen (versus a 5.5" screen on the DSE).
||New standard feature introduced last year: All of our Console Testers now have front wheels that "lock". This locking mechanism will prevent the tester from moving.
||We have an optional Armature Feature available for certain model Testers: S, TS, SP and MB Bench Models (6KV to 15KV only) and on our Console Models up to 15KV. With this optional Armature Feature, these models will be equipped with a high voltage rotary switch to permit the tester to operate as either a low inductance Armature Tester or a standard Surge Tester. This option is not available on our Portable Model Testers. See our price list page under Accessories/Options for this

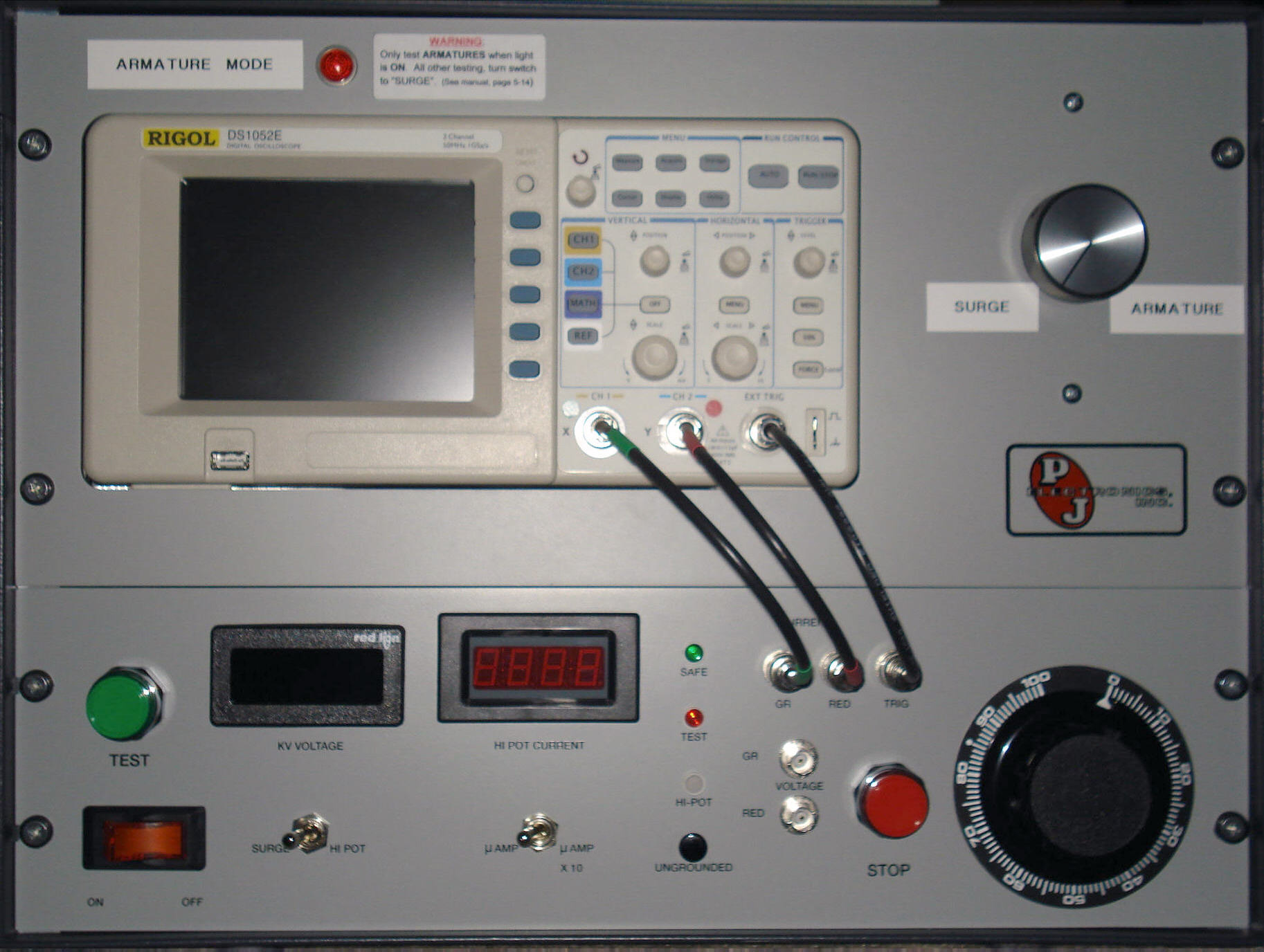

Armature Feature. (SP Model with optional Armature Feature, shown on right.)
||PJ Electronics is the only manufacturer on the Market that offers a 20KV transportable Bench Model! PJ Electronics now offers two 20KV Bench lines of PJ High Frequency Surge Testers: (1) the "SP20" Model: a 20KV Surge Tester with a 20KV DC Hi-Pot Tester in a Bench cabinet and (2) the "S20" Model: a 20KV Surge Tester in a Bench cabinet.
||All of our Digital Surge and Surge / DC Hi-Pot Testers come standard with USB ports, PC Communications Software and a bonus USB Flash Drive... at no additional cost! Click here to learn more.
||All PJ Surge Testers now come standard with a digital Rigol color oscilloscope! A color scope will show different colors of waveforms for the different channels on the oscilloscope.
||All of our Console Model Testers (40KV and higher models) are now equipped with a zero interlock safety feature, i.e., the voltage control knob must be positioned to Zero ("0") before the Surge Tester can be energized. This special feature prevents the operator from energizing the surge tester at maximum output voltage in between tests.
||Click on our Price List
page to see prices for all of our PJ Surge Testers including our new lines of Testers.
PJ Electronics offers 65 models from which to choose!
There is NO reason to pay for features that you do not need.
